Karlovac to Geneseo — the HS2000, the XD and What the M Changed

The XD(M) is an American-branded pistol designed and built in Croatia, sold for almost two decades by an Illinois company that did not design it, and marketed with a letter that the company’s own product pages never define. It is also a pistol that most of its owners bought in 9 mm or .45 ACP, while the example documented here is a .40 S&W — a chambering that the same company no longer offers in the same model.

This volume sets out what the pistol is and where it came from. It checks the catalog code the owner’s records give for this example against the maker’s own listing, traces the design from a Croatian wartime pistol through the HS2000 to the XD and the XD(M), and says what the “M” model actually changed. The later volumes take the mechanism (Volume 2), the cartridge (Volume 3), and the three things fitted to this particular pistol (Volumes 4 and 5) in turn.

1.1 The Pistol in One Table

The figures below are Springfield Armory’s own, from its product page for the XD(M) 4.5” .40 S&W as it stood in May 2014.¹ Retail listings for the same model commonly give 32 oz and an 8-inch length; the maker’s page gives 30 oz and 7.6 inches, and the maker’s figures are used here.

Table 1 — 1.1 The Pistol in One Table

Maker (design and manufacture)	HS Produkt, Karlovac, Croatia
Importer and brand	Springfield Armory (Springfield, Inc.), Geneseo, Illinois
Action	Short-recoil, locked breech, striker-fired
Calibre	.40 S&W
Barrel	4.5 in, steel, hammer forged, Melonite finish
Slide	Forged steel, Melonite finish
Frame	Black polymer
Recoil system	”One Piece Full Length Guide Rod”
Trigger pull (factory)	5.5–7.7 lb
Sights (factory)	Dovetailed front and rear, steel, three-dot
Magazines	Two, 16-round, stainless steel
Capacity	16 + 1
Weight	30 oz with empty magazine
Length / height / grip width	7.6 in / 5.75 in / 1.18 in

Those are the factory figures. Three of them no longer describe the pistol documented here: its trigger, its sights and its accessory rail have all been changed or occupied, and section 1.8 says how.

1.2 The Catalog Code, Checked Against the Maker

The owner’s inventory records this pistol as “XD(M) 16+1 (XDM9202HC SP)”. A catalog code written into a spreadsheet by hand is exactly the kind of detail that drifts, and this hub has shipped invented model numbers before, so the code was checked rather than assumed.

It is correct. Springfield’s own 2014 product page for the 4.5-inch .40 lists three options:¹

Table 2 — 1.2 The Catalog Code, Checked Against the Maker

Code	Springfield’s description
XDM9202HCSP	4.5” Full Size 40SW Black
XDM9212HCSP	4.5” Full Size .40SW Bi-Tone
XDM9232HCSP	4.5” Full Size .40SW OD Green

“XDM9202HC SP” is the first of these with a space in it. The space is cosmetic. The code also settles something the inventory does not otherwise record: this is the all-black model — black polymer frame, black Melonite slide — rather than the stainless-slide bi-tone or the olive frame.

Two warnings attach to the code. First, a search-engine answer box, asked about this exact code, asserted that it designates a 9 mm pistol. It does not; the maker’s page says .40. That is one more instance of the rule the hub learned the hard way — a search summary is not a source, and it will repeat an error with confidence. Second, what the letters mean is only partly established. Springfield’s current listings pair low-capacity models with full-capacity ones carrying “HC” in the code, which makes “high capacity” a reasonable reading of HC, but no Springfield page consulted defines it. The “SP” and “E” suffixes are not defined on any maker page consulted either, and no meaning is asserted for them here.

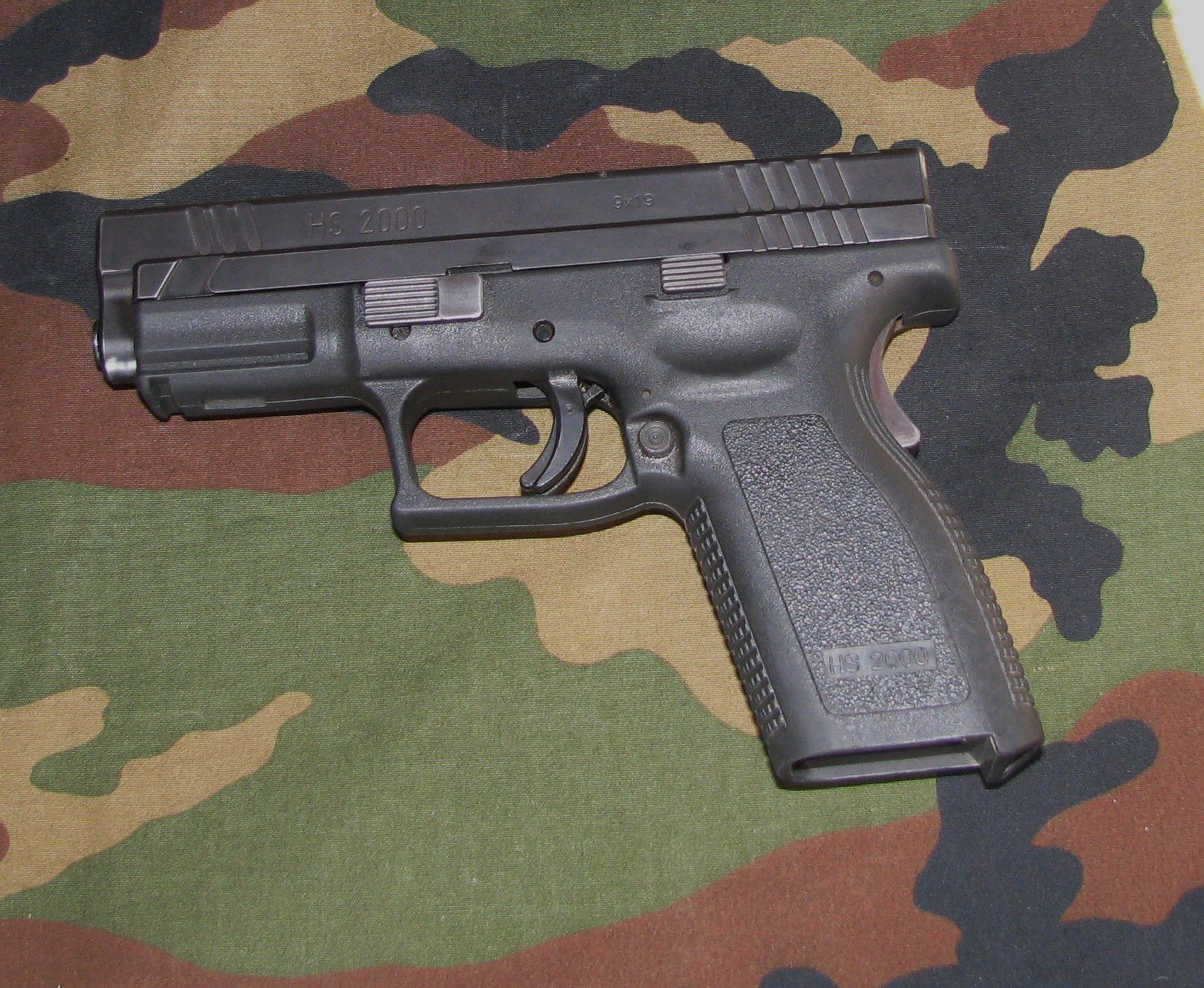

1.3 Croatia: From a Wartime Pistol to the HS2000

The design began in wartime. The Croatian Ministry of Defence’s magazine Hrvatski vojnik gives the company’s own origin story: during the Homeland War, two entrepreneurs, Ivan Žabčić and Marko Vuković, began developing a military pistol, produced within their firm IM Metal at Ozalj.² The first result was the PHP — Prvi hrvatski pištolj, “the first Croatian pistol” — which the magazine describes as based on the Walther P38 design, with a 15-round double-stack magazine and investment-cast parts.²

The next step abandoned the Walther lineage. The HS 95, introduced in 1995, replaced the P38-style locking system with what the same article calls a “simpler and more reliable Browning-derived” locking system with an oscillating — that is, tilting — barrel.² The HS2000 then dropped the external hammer and moved to a polymer frame.²

The HS2000’s date is given two ways, and both are recorded rather than reconciled. Hrvatski vojnik says it was “presented in 2000”;² the English-language encyclopaedic account gives 1999, and dates the company’s change of name from IM Metal to HS Produkt to the beginning of 2001.³ A pistol can be completed in one year and presented the next, and nothing here depends on which is right.

It was a service pistol first. American Rifleman’s long-serving handgun editor Wiley Clapp, writing in 2009, put it plainly: “The basic XD design came from Croatia, where it was developed as the HS 2000, a 9 mm service pistol for that nation’s military.”⁴

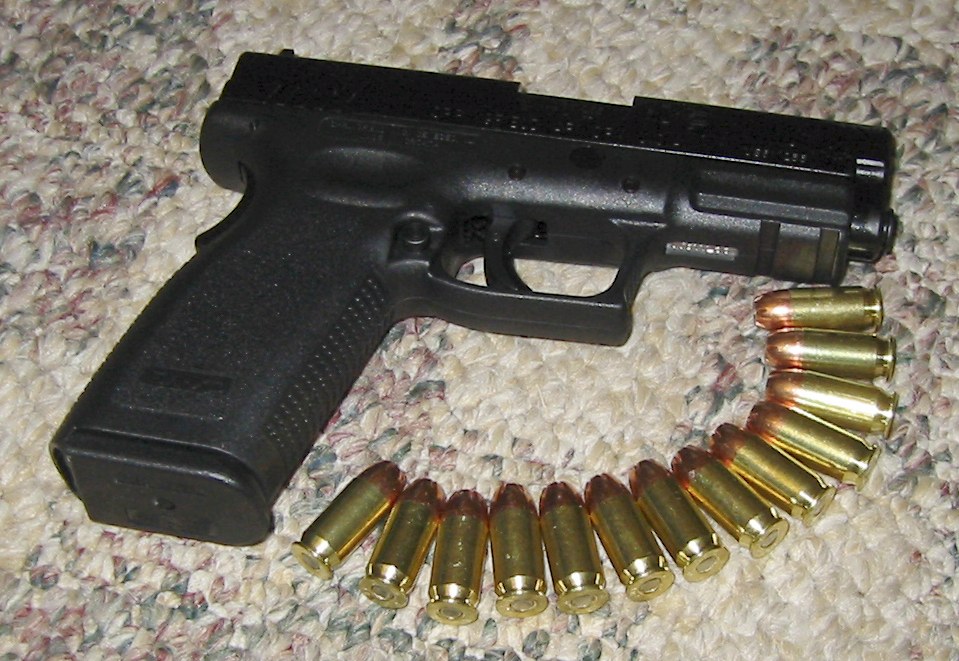

1.4 Springfield and the XD

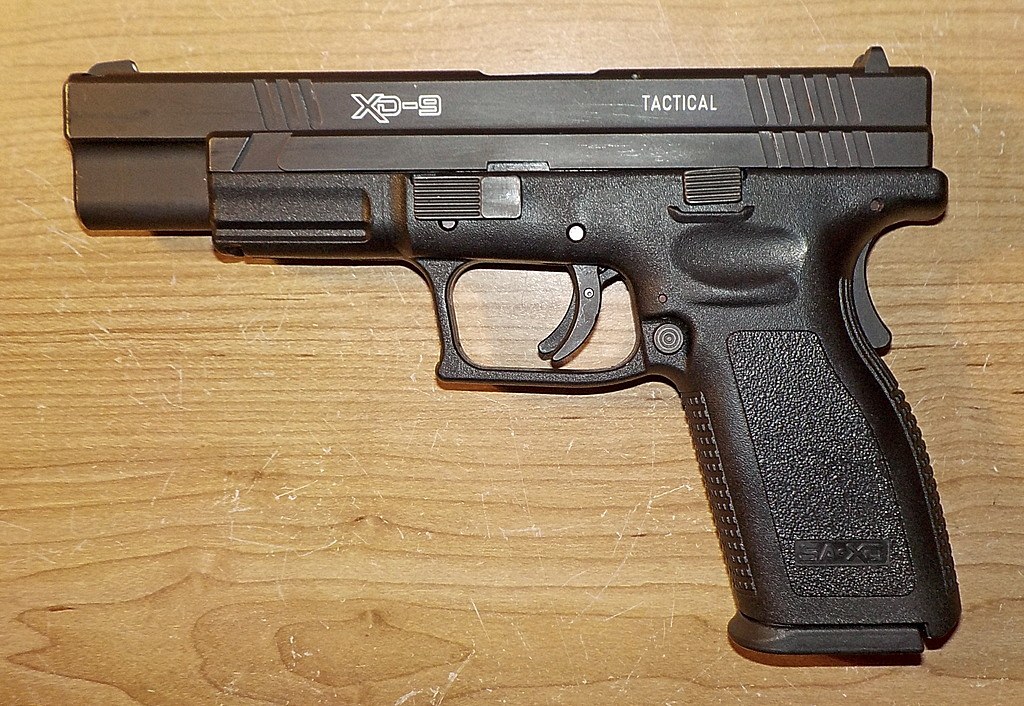

The HS2000 reached the United States before Springfield was involved. It was first exported by Intrac and distributed by HSAmerica, in 9 mm, under its Croatian name.³ Clapp describes what happened next: “Before very many of the HS 2000s were in circulation, the gun-savvy marketing people at Springfield Armory quickly negotiated for the rights to import and sell the gun in this country.” Rebranded, it became the XD — “for X-Treme Duty.”⁴ The year usually given for Springfield securing the rights is 2002.³

The arrangement has run ever since, in the same direction: HS Produkt designs and makes, Springfield imports, brands and sells. The Croatian account puts the combined output of the partnership at “nearly six million pistols”.² That is the maker’s side’s figure, published by its own government’s defence magazine, and it is given as such.

The XD line has been recognised repeatedly by the American shooting press. The same Croatian source lists six HS-designed pistols that won the NRA’s “pistol of the year” — the American Rifleman Golden Bullseye for handgun of the year — including the XD(M) in 2009.² Springfield’s own 2017 press release lists the “XD-M® 4.5” Full Size” among its earlier Golden Bullseye winners, without giving the year.⁵

1.5 What the M Changed

Springfield unveiled the XD(M) in 2008; Clapp cites American Rifleman’s own review of it in the September 2008 issue, and summarises the change in one line — “essentially an improved version — better accuracy, improved trigger action, enhanced ergonomics and aesthetics, even higher capacities.”⁴

Springfield’s own 2014 description of the 4.5-inch .40 names the specific features the model was sold on:¹

• Three interchangeable backstraps, so that the grip circumference fits the hand. The current manual shows them held by a single roll pin drifted out with a 3/32 punch.⁶
• “Mega-lock” grip texturing, far more aggressive than the XD’s plain stippling.
• A “minimal reset trigger” — the shorter reset that Volume 4 examines, because the aftermarket kit fitted to this pistol shortens it further.
• A match-grade barrel. Springfield’s copy says “the match-grade barrel will direct it with industry-leading precision”.
• Dovetailed sights front and rear, which is what made the TruGlo sights on this pistol a drop-in fitting (Volume 5).

The capacity rose with the grip. The .40 magazine is a 16-rounder; the maker’s current description of the line gives “as high as 19+1 in 9mm” in a flush-fitting magazine.⁷

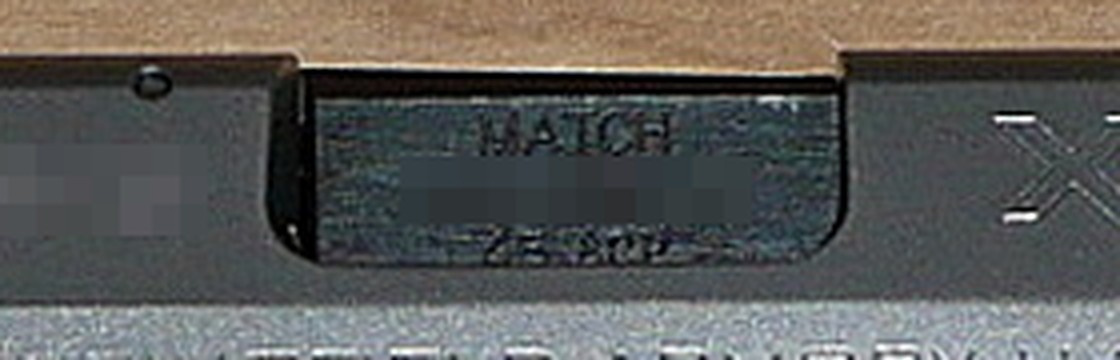

What the M stands for is not stated by the maker in anything consulted for this dive. The common reading is “match”, and the physical evidence supports it: the barrel hood of an XD(M) is stamped MATCH above the serial number and the calibre.

What the M did not change is as important. The layout, the takedown, the grip safety, the trigger safety, the internal striker block, the loaded-chamber indicator and the striker-status indicator all carried over from the HS2000 and the XD. Volume 2 takes those in detail from the maker’s manual.

The claim that the first XD(M) to reach the market was the 4.5-inch .40 with a 16-round magazine — which would make the pistol documented here the launch configuration — is widely repeated. It could not be confirmed from a primary source, and it is not asserted here.

1.6 XD(M) Becomes XD-M, and the .40 Leaves the Catalogue

The model’s name has changed spelling. Springfield’s current site calls it the XD-M®, with a hyphen, and its current manual is written for the “XD-M® & XD-M® Elite”.⁶ This dive uses XD(M) for the pistol documented here, because that is how the pistol, its period literature and the owner’s records all name it, and XD-M for the current product line.

The .40 is gone from the line. Springfield’s XD-M page, read on 19 September 2026, lists .45 ACP and 10 mm models and no .40 S&W model at all.⁷ There is an irony in the survivors: the 10 mm is the cartridge the .40 S&W was cut down from, and the .40 is the cartridge that displaced it. Volume 3 tells that story and what the retreat from .40 has meant for owners of pistols like this one.

1.7 The Business Relationship, Briefly

Springfield’s own page for the partnership quotes its CEO, Dennis Reese: “One of the greatest relationships we have nurtured over the last 20 years is our partnership with HS Produkt,” and names the Hellion, Hellcat, Echelon and XD as products of it.⁸ The relationship has since widened in the other direction. In March 2024 the Croatian business press reported that HS Produkt had signed an exclusive agreement to sell and distribute Springfield-branded firearms across Europe; the same report put HS Produkt’s export share to the United States at about 70 per cent of production and its annual revenue at around €100 million.⁹

This dive set out to include any business dispute between the two companies between 2020 and 2023, provided it could be documented from a primary source. No such dispute could be documented. Searches in English and Croatian turned up an unrelated Springfield lobbying controversy in Illinois in 2017, and reporting of a 2011 criminal matter in Croatia whose outcome could not be established from the sources located. Neither is reported here: the first is outside the subject, and the second would name individuals without being able to say how their case ended.

1.8 The Pistol Documented Here

As documented in September 2026, from the owner’s inventory (last modified 17 September 2026), the pistol is an XD(M) 4.5-inch in .40 S&W, catalog code XDM9202HCSP — the black model, per section 1.2 — with three changes, all recorded as installed:

Table 3 — As documented in September 2026**, from the owner's inventory (last modified 17 September 2026), the pistol is an XD(M) 4.5-inch in .40 S&W, catalog code XDM9202HCSP — the black model, per section 1.2 — with **three changes, all recorded as installed

Item, as the inventory names it	Status	Treated in
Powder River Precision (PRP) XD(M) 9/40 drop-in trigger kit	Installed	Volume 4
TruGlo “Bright-Site” TFO tritium and fibre-optic three-dot sights	Installed	Volume 5
Streamlight TLR-1 HL weapon light (part number 69266 on the inventory)	Installed	Volume 5

Two of those names are checked in the volumes that treat them. “Bright-Site” is the inventory’s spelling of TruGlo’s Brite-Site handgun-sight line, and the inventory does not say which of TruGlo’s two TFO sets for the XD family is fitted (Volume 5 §5.1). The TLR-1 HL’s output rating depends on when it was made, and the inventory’s “1000 lumen” is the current catalogue figure rather than necessarily this light’s (Volume 5 §5.6).

1.9 Reading Order

• Volume 2 — how the pistol works, from Springfield’s own manual: the three safeties, the two indicators, and what the grip safety does that a Glock owner does not expect.
• Volume 3 — the .40 S&W: why it was created, why the FBI walked away from it in 2014, and what that did to .40 pistols. The brass-side material lives in The Reloading Bench and is linked, not repeated.
• Volume 4 — the Powder River Precision trigger kit: what it replaces, what it claims, and what the maker of the pistol says about exactly this kind of change.
• Volume 5 — the TruGlo sights, with the tritium arithmetic worked, and the Streamlight light.
• Volume 6 — owning and maintaining it: the field strip and cleaning exactly as the manual gives them, magazines, the warranty’s position on handloads, and the Michigan law that bears on a centrefire pistol.

Sources

Footnotes

1. Springfield Armory, product page “XD(M)® 4.5” .40SW Handgun”, captured by the Internet Archive 24 May 2014, http://web.archive.org/web/20140524050034/http://www.springfield-armory.com/products/xdm-4-5-40-cal/ — specifications and the three .40 option codes. Accessed 19 September 2026. ↩ ↩² ↩³

2. Dubravko Gvozdanović, “Kako je HS Produkt osvojio Ameriku” (“How HS Produkt conquered America”), Hrvatski vojnik no. 640, 30 September 2021, https://hrvatski-vojnik.hr/kako-je-hs-produkt-osvojio-ameriku/ — read in translation; quotations are translations. Accessed 19 September 2026. ↩ ↩² ↩³ ↩⁴ ↩⁵ ↩⁶ ↩⁷

3. “HS2000”, Wikipedia, revision 1319437759 — used only for the IM Metal/HS Produkt name change, the 1999 date, the Intrac/HSAmerica import and the 2002 date, all of which are secondary and attributed as such. ↩ ↩² ↩³

4. Wiley Clapp, “The State of the Springfield Armory XD”, American Rifleman, 23 July 2009, https://www.americanrifleman.org/content/the-state-of-the-springfield-armory-xd/ . Accessed 19 September 2026. ↩ ↩² ↩³

5. Springfield Armory, “Springfield Armory® Adds Two More Golden Bullseye Awards”, press release, 7 February 2017, https://www.springfield-armory.com/intel/press-releases/springfield-armory-adds-two-golden-bullseye-awards/ . Accessed 19 September 2026. ↩

6. Springfield Armory, XD-M® & XD-M® Elite Operation & Safety Manual, 2022 edition (V16), https://www.springfield-armory.com/wp-content/uploads/XDmManual_V16.pdf — backstrap change p. 22. Accessed 19 September 2026. ↩ ↩²

7. Springfield Armory, “XD-M® Handguns”, https://www.springfield-armory.com/xd-series-handguns/xd-m-handguns/ — current listings (.45 ACP and 10 mm only) and the “19+1 in 9mm” capacity statement. Accessed 19 September 2026. ↩ ↩²

8. Springfield Armory, “HS-Produkt”, https://www.springfield-armory.com/hs-produkt/ . Accessed 19 September 2026. ↩

9. “HS Produkt sklopio ekskluzivan ugovor s američkim partnerom…”, Lider, 6 March 2024, https://lidermedia.hr/tvrtke-i-trzista/hs-produkt-sklopio-ekskluzivan-ugovor-s-americkim-partnerom-na-europskom-trzistu-prodavat-ce-i-distribuirati-springfieldovo-vatreno-oruzje-155952/ — read in translation. Accessed 19 September 2026. ↩
