The Fire Control Unit, and What Makes a Commercial M17

Every P320 is built around one part. SIG calls it the fire control unit, or FCU: a stainless-steel chassis that sits inside the polymer grip and carries the trigger, the sear, the slide catch and the rails the slide runs on. It is the part that carries the serial number, and in federal law it is the firearm. Everything else on the pistol — grip, slide, barrel, spring — is a part that can be bought, sold and swapped without a background check.

That single design decision explains most of what is distinctive about the P320: why SIG could offer the Army one pistol in two sizes, why the commercial M17 exists alongside a dozen other P320 configurations, and why a chassis like the Flux Raider X on the pistol documented here is possible at all. This volume covers the FCU — what it is, where it came from, and its legal status — and then the commercial P320-M17: what SIG sells, how it differs from the Army’s pistol, and where SIG’s own figures disagree with each other.

2.1 What the P320 Is

SIG’s operator’s manual describes the pistol in one sentence: “The P320 is a striker fired, mechanically locked, short recoil operated pistol with semi-automatic reloading.” It “features an interchangeable grip module, a reversible magazine catch/release, and ambidextrous controls,” and “An accessory rail is integrated into the grip module.” Its internal safeties, in SIG’s words: “The striker safety lock and disconnect safety prevent the firearm from firing unless the trigger is pulled.” A manual safety is optional, and “Certain models are equipped with a magazine disconnect.”¹

SIG dates it to 2014: “Released in 2014, the P320 is a polymer striker-fired pistol.”² The often-repeated launch at a January 2014 trade show is not confirmed on a SIG page and is not asserted here.

2.2 The FCU — What It Holds, and What It Does Not

SIG’s own glossary definition:

“The FCU is the component (frame) that houses a majority of the key functional parts of some handguns; including parts such as the trigger, sear, and slide catch lever; and is the serialized part of the firearm. With the SIG SAUER P320 or P365 modular handguns, the FCU can be easily removed from the grip module and swapped out with a variety of grips, barrels, and slides.”³

How the pistol divides between its three main assemblies, as far as SIG’s documents establish it:

Table 1 — How the pistol divides between its three main assemblies, as far as SIG's documents establish it

Assembly	What it carries	Source
FCU (stainless, serialized)	trigger, sear, slide catch lever; the frame rails the slide runs on; the takedown lever passes through it	SIG glossary; manual §13.8 (“Pull up on the frame rails, then rotate the FCU up and out”)
Slide	striker assembly, extractor, loaded-chamber-indicator post, sights and optic plate; houses barrel and recoil assembly	manual §13.2 (“Remove the striker assembly from the slide”)
Grip module (polymer)	magazine well and catch, accessory rail; sets grip size and length	manual §19.5 parts list

Two consequences follow that are easy to miss. The striker is in the slide, not in the FCU — the FCU holds the sear that holds the striker back, which is exactly the relationship the federal definition turns on. And the manual safety, on pistols that have one, acts on the FCU’s trigger bar — “The manual safety mechanically blocks the movement of the trigger bar, preventing release of the striker” — which is why removing it is FCU work (Volume 4, Volume 8).¹

⚠ Two details are inferred rather than documented and are marked as such: the exact seat of the manual-safety levers on the FCU, and the location of the striker safety lock (conventionally in the slide), were not found stated on a SIG parts list.

⚠ An error in SIG’s own manual not to repeat. The general P320 manual’s control table (§8.2) says the slide “cocks the internal hammer.” The P320 has no hammer; that line is boilerplate. The manual’s descriptive text (§8.1) and its disassembly sections are correct and are what is quoted here.

2.3 Where It Came From — the P250

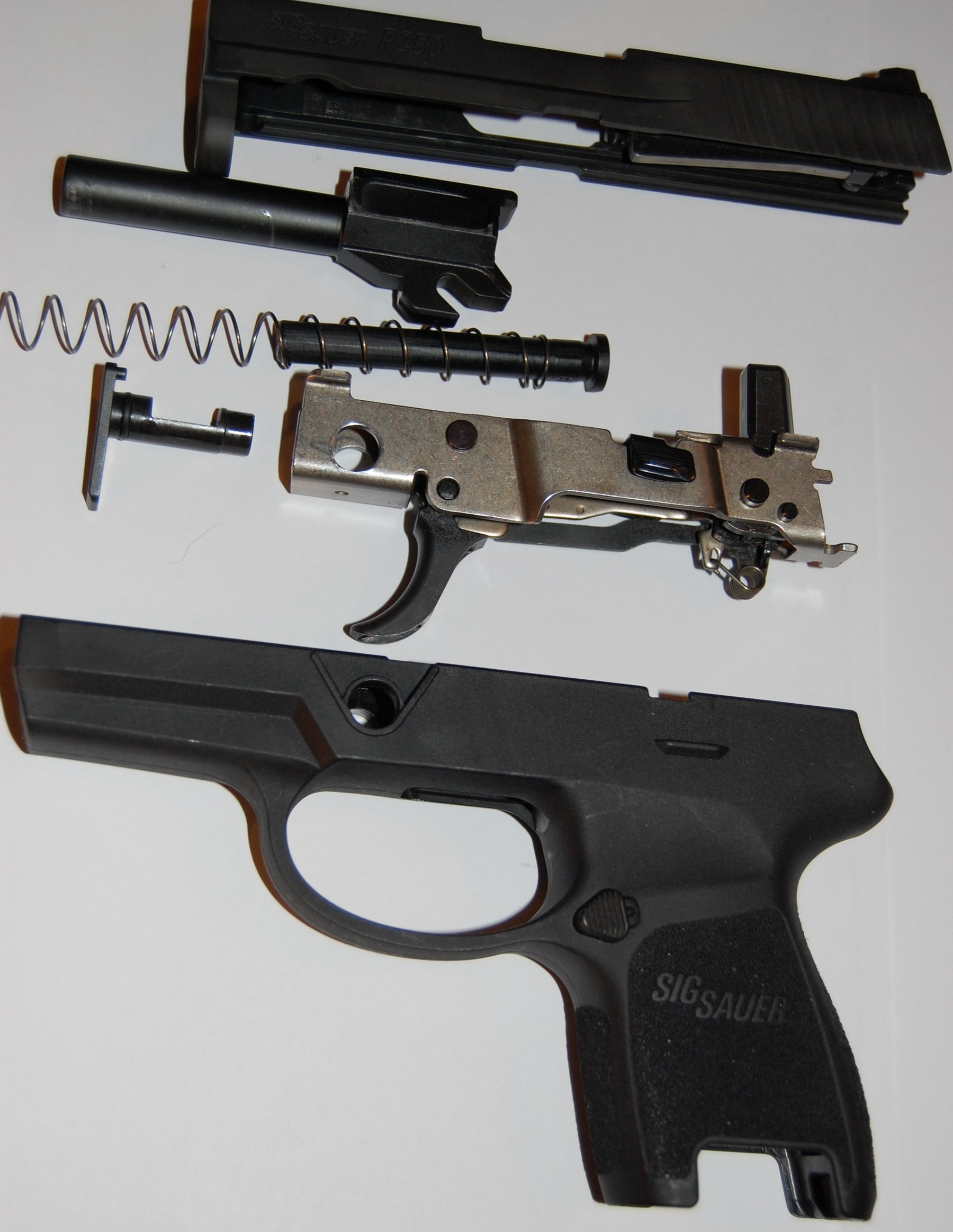

The P320 was not SIG’s first pistol built around a removable fire control unit. The P250, SIG’s hammer-fired, double-action-only polymer pistol, used the same idea: a removable metal chassis that could move between grip modules of different sizes. SIG’s own parts catalogue reflects the family tie — its current P320-M17 page lists magazines named “P250, P320 FULL/CARRY/M17 9MM 17RD MAGAZINE” and “P250,P320 FULL/CARRY 9MM 21RD EXTENDED MAGAZINE.”⁴

SIG’s January 2017 release called the P320 “the first modular pistol with interchangeable grip modules that can also be adjusted in frame size and caliber by the operator.”² Given the P250, that claim is SIG’s, and it is attributed rather than adopted: it holds if read as the first striker-fired pistol of the kind. That the P320 is a direct striker-fired derivative of the P250 is widely stated but was not found stated on a SIG page, and the P250’s introduction year was not established from a primary source.

SIG itself began selling the FCU on its own in November 2020. Its release described it as “The soul of the P320, and the driving force behind its modularity, is the patented, serialized fire control unit,” offered with “an exclusive FCU Serial Number (FCU ###).”⁵ A maker selling the serialized part bare, to be built into grips and slides the buyer chooses, is the plainest possible statement of which part it considers the firearm. The patent number or numbers for the FCU were not identified; a patent sometimes linked to the subject in search results turned out, on reading, to belong to a different inventor and a different mechanism.

2.4 The FCU Is the Firearm — in Regulation, by Name

Federal regulation does not leave this to inference. The 2022 definition of “frame or receiver,” 27 CFR 478.12, defines a handgun’s frame as “the part of a handgun, or variants thereof, that provides housing or a structure for the component (i.e., sear or equivalent) designed to hold back the hammer, striker, bolt, or similar primary energized component prior to initiation of the firing sequence.” Among its “nonexclusive examples,” paragraph (a)(4)(iv) names this pistol:

“Sig Sauer P250/P320 variant semiautomatic pistols: The frame is the internal removable chassis of the pistol that provides housing for the sear or equivalent component.”⁶

Paragraph (d) adds a presumption that “The modular subpart(s) identified … with an importer’s or manufacturer’s serial number shall be presumed … to be part of the frame or receiver.” The rule survived a facial challenge in the Supreme Court: Bondi v. VanDerStok, decided 26 March 2025 by seven votes to two, held it “not facially inconsistent with the GCA.”⁷

Three practical consequences, each taken up later:

• The serial number is on the FCU. On the Army’s XM17 the FCU’s serial shows through a window in the grip module above the trigger (Volume 1, first figure). A replacement grip module or slide carries no serial.
• Grip modules, slides and barrels move freely. They are parts, sold by SIG and others without transfer paperwork.
• A chassis is legally a grip module. The Raider X is a housing for the FCU, so moving the FCU into it does not make a new firearm. What is attached to the chassis is a separate question, answered in Volume 5.

2.5 The Commercial P320-M17

2.5.1 Launch

SIG introduced it on 18 July 2018: “SIG SAUER, Inc. is pleased to introduce the commercial variant of the U.S. Army’s M17 official service pistol called the P320-M17.” “The P320-M17 closely follows the specifications of the U.S. Army’s M17.” It shipped to dealers in August 2018 at an MSRP of $768.00 (SIG’s figure, July 2018).⁸

The launch description, verbatim: a “coyote-tan PVD coated stainless steel slide with the same optic cut as specified by the MHS contract, and black controls just like the pistols currently being shipped to the U.S. Army; it comes equipped with a SIGLITE front night sight and removable Night Sight rear plate,” and a “coyote-tan carry-length grip module, available in three sizes, and comes standard with a manual safety. Non-manual safety P320-M17 pistols will be shipped at a later date.”

2.5.2 What SIG sells now

SIG’s current product page lists the manual-safety pistol as 320F-9-M17-MS, and names a no-safety version, 320F-9-M17. The page’s specification for the manual-safety model:⁴

Table 2 — What SIG sells now

	SIG’s current page (captured 19 July 2026)
Calibre	9mm Luger
Magazines	one 17-round and two 21-round, steel
Sights	SIGLITE front; Night Sight rear plate
Optic	optic-ready, footprint listed as “PRO”
Slide	coyote PVD, stainless steel
FCU	stainless steel
Grip module	carry length, polymer, medium, coyote tan
Rail	M1913
Barrel	4.7 in, not threaded, carbon steel
Trigger	striker, standard, curved
Manual safety	yes
Weight	29.6 oz

Two further SKUs are ten-round versions for states with magazine limits. The launch release in 2018 said the pistol came with “two 17-round magazines”; the current page says one 17 and two 21. Both are SIG’s figures for different dates.

From the M17/M18 commercial operator’s manual (§18.2), for the M17: rifling 1:10, six grooves, right hand; sight radius 6.49 in; trigger pull 6.0–7.0 lb; weight without magazine 26.9 oz.⁹

2.5.3 Where SIG’s own figures disagree

SIG publishes at least four different overall lengths and four different widths for the same pistol:

Table 3 — SIG publishes at least four different overall lengths and four different widths for the same pistol

SIG source	Overall length	Width
Launch release, July 2018	8.0 in	1.3 in
Surplus release, December 2019	8.0 in	1.6 in
M17/M18 manual REV05 (2025), §18.2	8.05 in	1.55 in
Current product page, 10-round SKUs	8.5 in	1.6 in
Current product page, 320F-9-M17-MS	6.6 in	1.1 in

The 6.6-inch figure equals the sight radius printed beside it and is almost certainly a data-entry error on the page. The others are SIG’s own figures for the same pistol and are not reconciled here; a caliper on the pistol itself would settle it.

2.6 Issue M17 Against Commercial P320-M17

Table 4 — Issue M17 Against Commercial P320-M17

	Army M17 (as issued)	Commercial P320-M17
Name	M17 (XM17 in test)	P320-M17
Manual safety	ambidextrous, standard	standard on the -MS model; a no-safety version is listed
Controls	early issue pistols coyote; SIG said in July 2018 that pistols “currently being shipped to the U.S. Army” had black controls	black controls
Sights	self-illuminating; SIG’s surplus release describes “orange rear and green front SIGLITE Night Sights”	SIGLITE front, night-sight rear plate
Markings	U.S. Government slide markings; SIG’s 2023 auction pair carried serial prefixes TF (M17) and TC (M18)	commercial markings
Magazines	two 21-round and one 17-round per pistol (DOT&E)	one 17 and two 21 (current page)
Suppressor	”an Army standard suppressor conversion kit” (Army, 2017)	not threaded as sold
Ammunition fielded with it	XM1152 115 gr FMJ ball, XM1153 147 gr JHP	commercial

Sources: the Army and DOT&E documents in Volume 1; SIG’s releases of 2018, 2019 and 2023.⁸¹⁰¹¹

⚠ The loaded-chamber indicator. The issue M18 has one — a Naval Safety Command dispatch describes it as a feature “that its predecessor, the M9, did not have” — and SIG’s general P320 manual describes one on the slide. Whether the commercial P320-M17 carries one as standard was not found stated on SIG’s M17 page, and is not asserted.

2.6.1 The surplus M17s

Real ex-Army M17s have reached the civilian market twice, by SIG’s own account. On 17 December 2019 SIG announced “authentic, M17 Military Surplus handguns … manufactured under contract with the U.S. Army according to the original specifications,” with “coyote controls, the original government-issue markings and serial numbers, and orange rear and green front SIGLITE Night Sights,” and an ambidextrous manual safety.¹⁰ SIG did not say why they were surplus. The explanation usually given — that the Army changed from coyote to black controls and exchanged its early pistols — was not found on a primary page and is not asserted; the only primary hint is SIG’s 2018 remark about black controls on pistols “currently being shipped.”

In April 2023 SIG auctioned one M17 and one M18 surplus pair for charity; its release said “only 75 of the M18 surplus pistols in existence” and that SIG “has no plans to offer them commercially.”¹¹

2.7 Where the Pistol Documented Here Fits

The pistol documented here is a commercial P320-M17 with a 4.7-inch barrel. It was a manual-safety pistol — its record says the safety was removed — so it began as the manual-safety configuration; which SKU is not recorded. As of September 2026 its FCU and slide sit in a Flux Raider X chassis, its thumb safety has been replaced with a delete pin, and its barrel, recoil system and sights have been replaced; Volume 4 documents the build part by part. None of that changes which part is the firearm: the FCU, as SIG shipped it.

References

Footnotes

1. SIG Sauer, P320 Operator’s Manual, P/N 8501909-01 REV15 (©2025), §§8.1, 8.2, 8.3, 9.3, 13.2, 13.8, 19.5. https://www.sigsauer.com/media/sigsauer/resources/OPERATORS_MANUAL_P320_8501909-01_REV15_WEB.pdf (downloaded 2026-09-19). ↩ ↩²

2. SIG Sauer, “SIG SAUER, Inc. Awarded U.S. Army Contract for New Modular Handgun System (MHS),” 20 January 2017; read from the Internet Archive capture of SIG’s page (sigsauer.com refuses automated requests). ↩ ↩²

3. SIG Sauer, glossary, “Fire Control Unit (FCU)”; Internet Archive capture of 11 March 2026 of https://www.sigsauer.com/glossary/fire-control-unit-fcu/ ↩

4. SIG Sauer, P320-M17 product page, Internet Archive capture of 19 July 2026 of https://www.sigsauer.com/p320-m17.html ↩ ↩²

5. SIG Sauer, “SIG SAUER Begins Shipping P320 Fire Control Unit (FCU) and Launches P320 Studio,” 19 November 2020; Internet Archive capture of https://www.sigsauer.com/blog/sig-sauer-begins-shipping-p320-fcu ↩

6. 27 CFR 478.12(a)(1), (a)(4)(iv) and (d); 87 FR 24735 (26 April 2022), 87 FR 51249 (22 August 2022). https://www.law.cornell.edu/cfr/text/27/478.12 (accessed 2026-09-19). ↩

7. Bondi v. VanDerStok, No. 23-852, 604 U.S. ___ (26 March 2025). https://www.supremecourt.gov/opinions/24pdf/23-852_c07d.pdf ↩

8. SIG Sauer, “SIG SAUER Brings the U.S. Army’s M17 to the Commercial Market,” 18 July 2018; Internet Archive capture of https://www.sigsauer.com/blog/sig-sauer-brings-the-u-s-armys-m17-to-the-commercial-market ↩ ↩²

9. SIG Sauer, P320-M17 / P320-M18 Operator’s Manual, P/N 1302517-01 REV05 (©2025), §18.2. https://www.sigsauer.com/media/sigsauer/resources/OPERATOR_MANUAL_M17_M18_COMMERCIAL_1302517-01_REV05_WEB_FILE.pdf (downloaded 2026-09-19). ↩

10. SIG Sauer, “SIG SAUER Releases Authentic M17 Military Surplus Handguns Commercially,” 17 December 2019; Internet Archive capture of https://www.sigsauer.com/blog/sig-sauer-releases-authentic-m17-military-surplus-handguns-commercially ↩ ↩²

11. SIG Sauer, “SIG SAUER Releases Rare Set of Surplus M17 and M18 Pistols to Benefit Sterling’s Promise Foundation,” 24 April 2023; Internet Archive capture of SIG’s page. ↩ ↩²
