Magazines — What Smith & Wesson Says Fits, and Why the Common Answer Is Wrong

Five magazine families under one name, a maker's rule that is stricter than the folklore, and why 'it locks in' is not a test

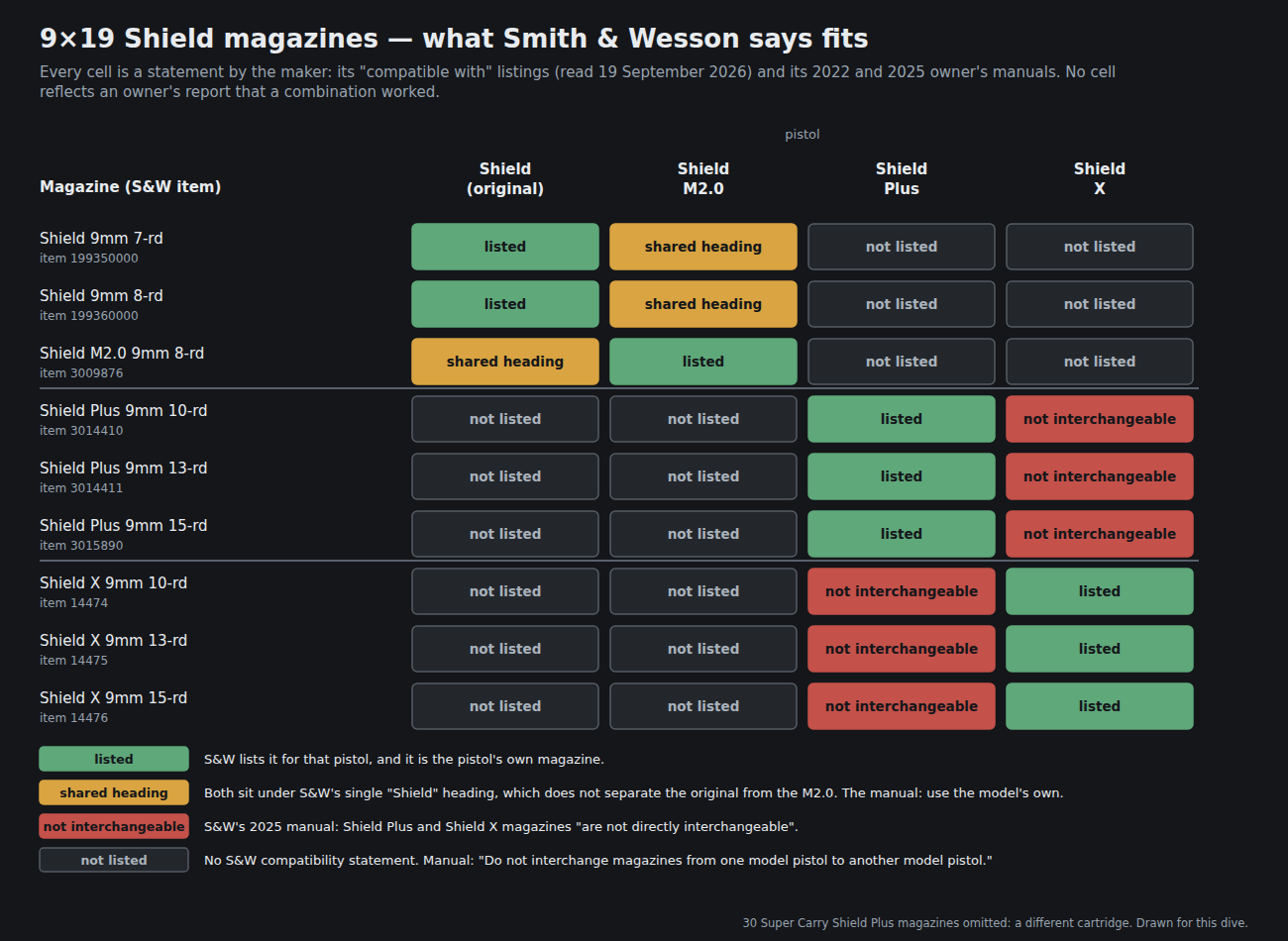

Figure 1 — Smith & Wesson's own compatibility statements for 9×19 Shield magazines, drawn as a matrix. Green: the maker lists the magazine for that pistol and it is that pistol's own. Amber: the original and … — Figure 1 — Smith & Wesson's own compatibility statements for 9×19 Shield magazines, drawn as a matrix. Green: the maker lists the magazine for that pistol and it is that pistol's own. Amber: the original and M2.0 magazines sit under one "Shield" heading that does not separate the two pistols. Red: the maker's manual says the magazines are not interchangeable. Grey: the maker makes no compatibility statement, which under the manual's rule means do not use it. No cell anywhere is green because an owner reported that it worked.

The most common mistake made about the Shield is a magazine mistake, and it is made in both directions. It is also the mistake with the least excuse, because Smith & Wesson has written down its position, and that position is simpler and stricter than any of the rules of thumb in circulation.

3.1 Why this is the error people make

Three things conspire.

The name. Four striker-fired pistols have been sold as “M&P Shield” since 2012 — the original, the M2.0, the Shield Plus and the Shield X — and they use four magazine families (Volume 2).

The shared upper. Smith & Wesson sells a 3.1-inch barrel that “fits any Shield or Shield Plus with 3.1” Barrel” and an optics-ready slide described as “Drop-in Fit - Change the slide on your M&P® Shield 1.0, 2.0 or SHIELD PLUS.”¹² An owner who has learned that the slides and barrels interchange has every reason to expect the magazines to, and they do not follow the same rule. The upper is common; the frame and its magazine well are not.

The capacity numbers overlap. Smith & Wesson makes a 10-round Shield Plus magazine and a 10-round Shield X magazine, and a 13- and 15-round magazine for each.³⁴ The same number on the floorplate does not mean the same magazine, and Smith & Wesson says the Shield Plus and Shield X magazines are “not directly interchangeable”.⁵

3.2 What Smith & Wesson actually says

The Shield Plus manual of 2022 and the combined Shield Plus and Shield X manual of 2025 carry the same paragraph, word for word:

Smith & Wesson® has provided you with a magazine designed to operate in your specific model of pistol. While your magazine may be able to be inserted into another model pistol, it will only function properly in the specific model for which it was designed. Do not interchange magazines from one model pistol to another model pistol.⁶⁵

and, immediately after:

Failure to use the particular type of Smith & Wesson® magazine specified for your model and caliber of pistol may result in a malfunction.

The 2025 manual adds, for the two current pistols:

The grip length of a SHIELD® Plus pistol is shorter than the grip length of the SHIELD X™ pistol … The magazines are not directly interchangeable.

and captions each magazine figure the same way: the Shield Plus “has a shorter grip frame and uses dedicated magazines”; the Shield X “has a longer grip frame and uses dedicated magazines”.⁵

That is the whole of the maker’s rule, and it is categorical. It does not say “the Plus will accept single-stack magazines but not the reverse”. It does not say “the M2.0 and the original share magazines”. It says the magazine made for a model is the one that functions in it, and that a magazine which can be inserted into another model is not thereby a magazine which works in it.

3.3 The magazines, by family

Smith & Wesson’s store groups its magazines by the pistol they are “compatible with”. As listed on 19 September 2026, for 9×19:

Table 1 — Smith & Wesson's store groups its magazines by the pistol they are "compatible with". As listed on 19 September 2026, for 9×19

Listed under	Magazine	Item	Price (19 Sep 2026)
Shield	M&P Shield Magazine 9mm 7rd	199350000	$38
Shield	M&P Shield Magazine 9mm 8rd	199360000	$38
Shield	M&P Shield M2.0 Magazine 9mm 8rd (“with Finger Rest”)	3009876	$38
Shield Plus	M&P Shield Plus Magazine 9mm 10rd	3014410	$41
Shield Plus	M&P Shield Plus Magazine 9mm 13rd	3014411	$41
Shield Plus	M&P Shield Plus Magazine 9mm 15rd	3015890	$41
Shield X	M&P Shield X Magazine 9mm 10rd	14474	$41
Shield X	M&P Shield X Magazine 9mm 13rd	14475	$41
Shield X	M&P Shield X Magazine 9mm 15rd	14476	$41

Source: Smith & Wesson’s “compatible with” category pages for the Shield, Shield Plus and Shield X, read from the pages’ own product data.⁷³⁴ The Shield Plus page also lists 13- and 16-round 30 Super Carry magazines, for the Shield Plus chambered in that cartridge; they are listed here only so that they are never mistaken for 9 mm magazines on the strength of the words “Shield Plus”.

Two features of that listing matter.

Smith & Wesson has no separate “compatible with Shield M2.0” page. Its menu offers Shield, Shield Plus, Shield EZ and Shield X. Both the original 8-round magazine and the M2.0 8-round magazine sit under “Shield”. The listing therefore does not say whether an original 8-round magazine is the magazine “designed to operate in” an M2.0, or the reverse. The manual’s rule answers the question the listing leaves open: the M2.0 magazine is for the M2.0.

No single-stack magazine is listed under Shield Plus, and no Shield Plus magazine under Shield. The maker’s own grouping gives no support to either cross-generation claim.

3.4 The compatibility matrix

The matrix at the head of this volume draws the table as the maker’s statements, pistol by pistol. Four kinds of cell appear:

Listed — Smith & Wesson lists the magazine as compatible with that pistol, and it is the pistol’s own magazine.
Shared heading — the original and M2.0 magazines are both listed under “Shield”, a heading that covers both pistols without distinguishing them; the manual’s rule is to use the model’s own.
Not interchangeable — Smith & Wesson’s manual says so in terms (Shield Plus and Shield X).
Not listed — Smith & Wesson makes no compatibility statement; under the manual’s rule the magazine is not to be used.

What the matrix does not contain is a single cell derived from an owner’s report that a particular combination fed a box of ammunition. That is deliberate, and the next two sections explain why.

3.5 What the folklore gets wrong

Two opposite claims circulate about the original and M2.0 magazines in a Shield Plus: that the Plus “takes the old magazines”, and that the old magazines are too thin and will not work. Search-engine answer boxes currently give the second, sourced to forum and retailer threads. Neither claim was found on any Smith & Wesson page, and neither is repeated in this dive as fact.

The error is not in which answer is right. It is in treating it as an empirical question to be settled by owners’ reports at all. The maker has answered it, the answer is “do not”, and the reason is not that every such combination will fail on the first magazine; it is that a magazine that is not designed for the pistol has no guarantee of feeding, locking the slide back, or seating reliably under the conditions a carry pistol is kept for — dirty, cold, one-handed, or with the magazine struck against the palm in a hurry.

A carry pistol is the wrong place to discover a marginal magazine. An owner who reads “it works in mine” on a forum is reading a report about someone else’s magazine, someone else’s frame, someone else’s ammunition and someone else’s round count.

3.6 Why “it locks in” proves nothing

A magazine has several jobs, and the magazine catch engaging its notch is only the first.

Table 2 — Why "it locks in" proves nothing

Job	What has to be right
Stay seated	the catch notch in the right place on the tube for that frame’s catch
Present each round	feed-lip geometry and height matched to the slide’s breech face and the barrel’s feed ramp
Lock the slide back when empty	the follower’s slide-stop tab reaching the slide stop in that frame
Release cleanly	the tube clearing the magazine well when the catch is pressed, without binding on a wider or narrower well
Operate a magazine disconnect, if fitted	the tube reaching the disconnect lever that “is present in the magazine well” on pistols so equipped⁵

Smith & Wesson’s warning — “While your magazine may be able to be inserted into another model pistol, it will only function properly in the specific model for which it was designed” — is a statement that the first row can be satisfied while the others are not.⁵ The rows are general to any detachable-box magazine; no source was found that sets out, dimension by dimension, where the Shield magazines differ, and none is invented here.

The empty-magazine check is the one most often skipped. A wrong magazine that feeds may still fail to lock the slide back on the last round. On a carry pistol that failure costs the one visual and tactile cue that the pistol is empty.

3.7 Stack-and-a-half, and the P365’s magazine

The Shield Plus’s magazine is not the original’s made longer. American Rifleman’s review reports that Smith & Wesson calls it a “stack-and-a-half” design, “evidenced by the wider body dimensions of the Shield Plus magazine versus that of the original Shield”, and gives the Shield Plus at 1.1 inches at its widest against the original’s 0.95.⁸ A staggered column that narrows toward the feed lips is the same idea SIG Sauer had used in the P365 three years earlier, described in reproductions of SIG’s 2018 release as a “narrow-neck, modified double-stack” magazine.⁹

Figure 2 — A SIG Sauer P365 magazine. The tube is widest at the bottom, where the column is staggered, and narrows toward the top, where rounds are presented singly. The idea is what let a ten-round magazine … — Figure 2 — A SIG Sauer P365 magazine. The tube is widest at the bottom, where the column is staggered, and narrows toward the top, where rounds are presented singly. The idea is what let a ten-round magazine fit a grip close to single-stack width — and it is why a Shield Plus magazine is a different part from a single-stack Shield magazine, not a longer one.

That is the physical reason the families differ: the single-stack tube and the stack-and-a-half tube are different shapes, feeding the same cartridge into a slide that Smith & Wesson happens to make interchangeable.

3.8 Taking a magazine apart

Smith & Wesson’s current manual describes two floorplate types: “Type 1 uses a ‘push-button’ floor plate catch and Type 2 uses a ‘friction-fit’ floor plate catch”, with separate instructions for each, and warns that “there are several versions” of the floorplate catch and floorplate “for various models”.⁵

For the Type 1 magazine the manual’s sequence is: depress the floorplate catch through the hole in the floorplate with a small-diameter tool; slide the floorplate forward off the tube while holding the catch in the tube against spring pressure; remove the catch, spring and follower through the bottom of the tube. Reassembly is the reverse, with the spring, follower and catch “in exactly the same orientation as they were in when they were first removed”, and a final check “by exerting some pressure on the floor plate - as if trying to slide it off the tube.”⁵ Every step carries the manual’s warning that the spring is under pressure and must be controlled.

The Type 2 friction-fit floorplate has its own procedure in the manual, and the manual rather than a summary should be followed for it.

Floorplates are also model-specific. The manual’s note that floorplate catches and floorplates come in several versions for different models is the same rule applied to the smallest part: a floorplate that fits a tube is not thereby the floorplate for that tube.

3.9 Practice for an owner

What follows is not from Smith & Wesson; it is what the maker’s rule implies for someone who owns more than one Shield, or one Shield and a drawer of magazines.

Identify the pistol first, by the frame (Volume 2), and buy magazines by that identification and Smith & Wesson’s listing — not by the slide marking, and not by what fits.
Keep magazine families physically apart if more than one Shield generation is owned. A 10-round Shield Plus and a 10-round Shield X magazine carry the same number.
Mark each magazine with the pistol it belongs to, and number them, so that a malfunction can be traced to one magazine rather than blamed on the pistol.
Function-check every magazine in the pistol it will be carried in: seating and release, feeding a full magazine, and slide lock on the last round.
Carry only magazines that have passed that check in that pistol.

3.10 Applied to the pistol documented here

The owner’s records list no magazines for the pistol documented here, and the generation of the pistol is not recorded. Until the generation is known, the correct magazines for it are not known either — which is the practical reason the generation question heads the list of questions for the owner.
