The VR Family and the AR Question — From the VR60 to the VR80, and What AR-15 Parts Fit

A box-fed shotgun that moved its gas system onto the barrel, took on AR takedown pins, and still keeps its own trigger

A box-magazine shotgun solves the problem that a tube magazine creates: it can be reloaded in one motion. It also creates problems a tube gun never has — a magazine lip that must hold a soft, rimmed, 2¾-inch paper-or-plastic shell against spring pressure, and a receiver long enough to strip that shell forward and straight. Derya’s answer came in two generations, sold in the United States as the VR60 and the VR80. This volume traces what changed between them and then takes up the question every AR-15 owner asks of the VR80 within a minute of handling one: which of the parts already in the parts bin will fit it.

2.1 The Box-Fed Shotgun Before the VR Series

The VR80 did not invent the magazine-fed semi-automatic 12 gauge. The best-known earlier example in the United States market is the Russian Saiga-12, a Kalashnikov-pattern shotgun: a rotating bolt in a stamped receiver, a gas piston above the barrel, and a curved box magazine rocked into the magazine well the way an AK magazine is. It established that a box-fed 12 gauge could be made to work, and it set the pattern of problems — magazine lips, feed reliability with soft shells, and sensitivity to load power — that every later design has had to address.

Figure 1 — A Saiga-12 on a gravel surface, fitted with a folding stock, a vertical foregrip on a rail, a red-dot sight and a curved box magazine. The receiver, the dust cover and the magazine rocked into the … — Figure 1 — A Saiga-12 on a gravel surface, fitted with a folding stock, a vertical foregrip on a rail, a red-dot sight and a curved box magazine. The receiver, the dust cover and the magazine rocked into the well are those of the Kalashnikov rifle scaled up to 12 gauge — the other lineage of box-fed shotgun, and the one the AR-pattern designs set out to replace.

The Kalashnikov pattern carries the Kalashnikov’s ergonomics with it: a safety lever on the right side of the receiver, a magazine that rocks in rather than inserting straight, and controls that an AR-15 shooter has to learn fresh. The market Derya built for is the one that already knows the AR-15’s controls. Armscor’s own product text puts it plainly: the VR80 “offers familiar AR-15 ergonomics and controls so you don’t need to re-train your mechanics when running 3 gun”.¹

2.2 The VR60: the Gas System Under the Barrel

The VR60 is the first VR-series shotgun in Armscor’s current line, and at $366 MSRP (read 19 September 2026) its cheapest semi-automatic.¹ Armscor describes its action as “a conventional gas-operated action which is located around the support tube that runs below the barrel”, with an aluminium alloy upper receiver, “M16-style manual safety and magazine release”, and a “removable carry handle with integrated Picatinny rail”.¹

That description matters for what follows. A conventional semi-automatic hunting shotgun — the Remington 1100 pattern and most of its descendants — runs its gas piston on the magazine tube under the barrel. A box-fed gun has no magazine tube, and the VR60 keeps a tube there anyway, as a support for the gas system, so that the rest of a conventional shotgun action can stay where it is. The VR60 is, in that sense, a tube-magazine shotgun’s action wearing a box magazine.

Its 2016 manual confirms the layout from the other end. The disassembly sequence tells the owner to unscrew the handguard cap, draw the handguard forward, “Remove the barrel fixing nut but you don’t need to remove regulator nut and spring” — the VR60 has a spring-loaded gas regulator — then withdraw the barrel while easing the bolt forward, and “Turn the ratchet downward to release the carrier”.² The upper receiver is held to the buttstock by a single retention bolt reached through the butt after the buttpad is removed; the manual’s instructions for it run to seven lines of loosening, tapping and prying, and warn the owner to hold the recoil spring compressed “to keep the bolt from pushing forward and damaging the feed ramp”.² It is a hunting-shotgun stock bolt, not an AR takedown.

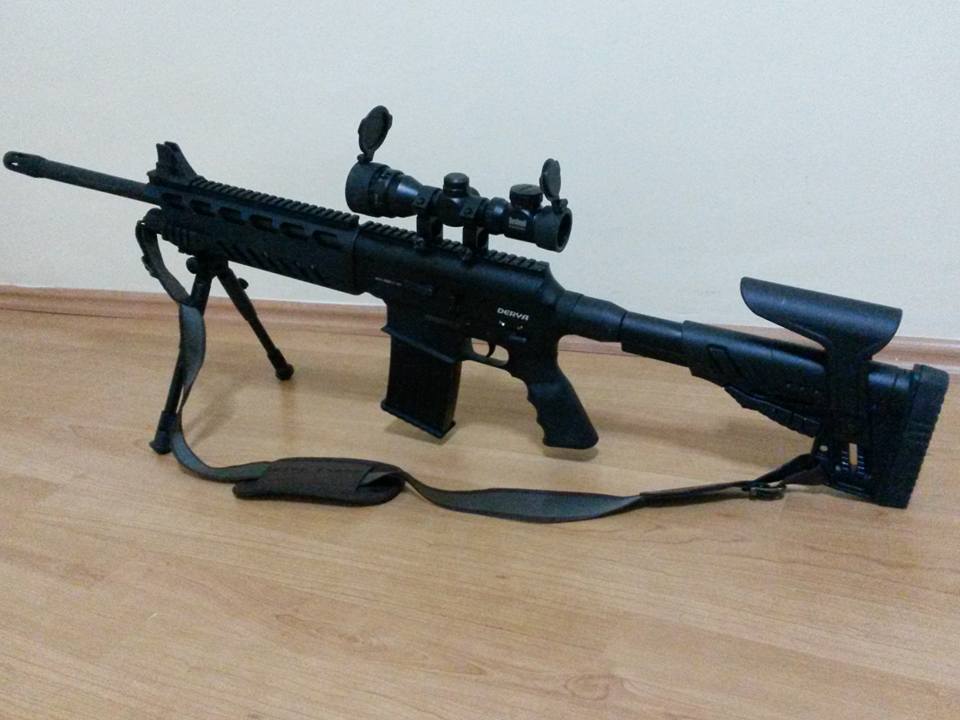

Figure 2 — A Derya MK-10 fitted, in its uploader's words, with a Picatinny rail, a bipod and a telescopic sight, resting on a wooden floor. The MK-10 is another of Derya's box-fed shotguns: the thumbhole-styl… — Figure 2 — A Derya MK-10 fitted, in its uploader's words, with a Picatinny rail, a bipod and a telescopic sight, resting on a wooden floor. The MK-10 is another of Derya's box-fed shotguns: the thumbhole-style stock and the curved magazine are Derya's, but the receiver is not the AR-pattern two-piece design of the MK-12 and VR80. Whether the MK-10 is the gun Armscor sells as the VR60 could not be confirmed from a primary source.

2.3 The VR80: the Same Idea, Rebuilt in the AR Pattern

The VR80 keeps the VR60’s gauge, barrel length and five-round magazine and changes almost everything else.¹³

Two receivers, two pins. An upper and a lower, both “constructed from 7075 T6 aluminum” per Armscor, joined by two captive “detaching pins” that the manual has the owner push through and pull from the other side “until it sets” — the AR-15’s takedown in function and appearance. Separating them is steps 4 to 6 of the manual’s twelve-step field strip (Vol 3).
No support tube. The gas block, the annular piston and the operating sleeve (“slide”) are carried on the barrel itself, under the handguard. The VR80 is the VR60’s conventional gas system moved up onto the only tube a box-fed gun has left. Volume 3 describes it part by part.
A buffer tube behind the receiver. The recoil spring and a “bolt buffer” live in a tube behind the lower receiver — the manual calls it the “Stock Support” (part 34) — exactly where an AR-15 keeps its buffer and action spring. The factory thumbhole stock slides over it.
The DAXOS cocking handle. A knob on the bolt, not an AR charging handle at the rear of the upper. The manual shows it pulled out of one side and pushed into the other: “Pull the charging handle / Insert the charging handle from the other side / Make sure the handle is set”.³ It can be run on either side of the gun.
AR-pattern controls. A safety selector above the grip, a magazine release and a bolt catch in the positions an AR shooter’s hands already expect.
A Picatinny top rail, flip-up front and rear sights, and a long spiral-fluted barrel shroud that screws on at the muzzle end and, per an aftermarket maker, doubles as the handguard nut.

Chambering and chokes are unchanged in kind: 2¾ and 3 in shells, and three screw-in chokes — Full, Modified and Improved Cylinder — in a thread pattern the manual never names (Vol 4).

2.4 The VR Line as Armscor Sells It Today

Armscor’s semi-automatic shotgun page, read 19 September 2026, lists these VR-family products, with the colourway exclusives collapsed:¹

Table 1 — The VR Line as Armscor Sells It Today

Model	SKU	What it is
VR60 Standard	601-BC	the under-barrel support-tube gas gun; $366 MSRP
VR70	VR70	a further Derya VR-series model (Derya lists a VR70)
VR80	VR80	the AR-pattern gun documented here; $695 MSRP
VR80 CA-MRB	VR80-CA	a California-configured VR80 (its own manual is listed separately)
VR80 F-LESS STOCK MRB	VR80-FL-MRB	a VR80 variant; the page gives no more than the name
VRPA40	VRPA40	a five-round 12 gauge listed on the same page with its own manual; its action was not checked for this dive
VR80 colourways	VR80-STW and others	distributor exclusives; Vol 1 §1.5

⚠ A 20-gauge VR82 appears in the aftermarket record — Tooth and Nail Armory sold its trigger kit “for the Rock Island VR80 and VR82 … VR82 (20 Gauge)” — but it is not on Armscor’s current semi-automatic page.⁴ Whether it is discontinued or simply not listed was not established.

2.5 What AR-15 Parts Fit, and What Does Not

This is the question the AR pattern invites, and the answers are uneven. RIA publishes no compatibility list and no thread or pin specifications, so the evidence below comes from four kinds of primary source: the manual’s own parts list, the product pages of companies that make parts for the gun, the archived catalogue of Tooth and Nail Armory, a shop that specialised in reworking VR80s (Vol 6 records that its store has since gone dark) — and the parts catalogue of Advanced Tactical, which describes itself as “A Subsidiary of Armscor / Rock Island Armory”.³⁴⁵⁶

Table 2 — What AR-15 Parts Fit, and What Does Not

Part	Fits?	Evidence
Pistol grip	✅ AR grips fit	Tooth and Nail’s 2021 VR80 packages list a BCM Mod 1 grip; the Stormtrooper ships with a spare grip (Vol 1)
Receiver extension and stock	✅ with an AR carbine tube	the factory part is itself a steel “VR80 - Buffer Tube” held by a “Buffer Castle Nut” (Armscor’s parts store); the same store lists a J&E Machine Tech SOPMOD mil-spec buttstock and buffer-tube kit and a Hogue AR-15 collapsible stock under “VR80 Competition”; Tooth and Nail’s packages used a “Mil-spec Buffer Tube”; the Luth-AR MBA-3 fitted to the gun documented here “requires a Carbine buffer tube”
Recoil spring and buffer	❌ the VR80’s own	manual parts 38–40: “Bolt Buffer”, “Bolt Return Spring”, “Lock Ring”; sold separately as “VR80 - Main Return Spring” and an aluminium “VR80 - Buffer”
Trigger group	❌ not an AR drop-in	see §2.6; Armscor’s parts store gives the factory trigger pin as 6 mm in diameter
Safety selector	❌ not an AR selector	manual parts 14–20: a safety, two separate safety levers held by two retaining screws, a detent and spring; Tooth and Nail sold its own ambidextrous VR80 levers
Magazine	❌ VR80-specific	12-gauge box; warranty excludes aftermarket magazines (Vol 3)
Charging handle	❌	DAXOS knob on the bolt; there is no AR charging-handle channel
Bolt and carrier	❌	“Bolt”, “Slide Carrier”, “Buffer Bolt System”, “Lock” (parts 46–51)
Handguard	❌ VR80-specific	retained by the barrel shroud / handguard nut; aftermarket M-LOK units made for the gun exist
Muzzle devices	❌	no AR thread; the muzzle carries a choke tube (Vol 4)
Optics and rail accessories	✅	Picatinny top rail
Bipod	✅	on an M-LOK slot of the handguard, where it has one

⚠ The receiver-extension thread is not published by RIA. The evidence that a mil-spec tube threads into the lower is that Armscor’s own parts subsidiary sells a mil-spec AR stock-and-tube kit for the gun, that a specialist shop built guns that way, and that a stock maker’s AR carbine stock is fitted to the gun documented here. That is strong evidence, but it is not a published thread specification, and the kit’s listing does not say whether its AR carbine spring and 3 oz buffer are meant to replace the VR80’s own spring and buffer. The owner’s own gun is the place to confirm what it carries (Vol 6).

Two further cautions follow from the table. First, the VR80’s recoil spring and buffer still have to live somewhere when the factory stock support is replaced. Which tube the gun documented here carries, and what is inside it, is not recorded (Vol 6). Second, every item on the ✅ side of the table voids the factory warranty as written: the manual lists “Any addition of after market parts” among the ways to void it (Vol 3 §3.10).

2.6 The Trigger Group, and Why the Mimtac Exists

The trigger is where the AR resemblance is most misleading, and three independent sources agree.

The manual’s parts list. The VR80’s hammer rides on a “Hammer Pin Sleeve. Male” and a “Hammer Pin Sleeve. Female” (parts 9 and 10) around a hammer pin, with “Crescent washer” retainers (parts 7 and 13).³ A two-piece sleeve on the hammer axis is not how an AR-15 hammer is carried, and it tells a builder at once that the pin geometry is the maker’s own.

A trigger maker’s own catalogue. Mimtac sells two shotgun triggers and distinguishes them in its own words. The Drastic ST is “a drop-in trigger designed for VR80, MK12, GF25, and similar supported platforms”. The M4X AR-12 is “a mil-spec-compatible option for AR-style 12GA shotguns built around compatible fire-control pocket dimensions”.⁵ A company that makes AR triggers for a living, offering a separate product for the VR80 and a separate one for mil-spec-pocket shotguns, is as clear a statement as exists that the VR80’s fire-control pocket is not a mil-spec AR pocket.

A specialist’s kit. Tooth and Nail Armory’s VR80 trigger kit contained a VR80-specific hammer, trigger and disconnector, anti-walk pins — and a “JP Enhanced Reliability Spring Kit”, a spring set made for the AR-15. Its page reported factory triggers “breaking as high as 10 lbs!!” and its kit at 4.5 to 5 lb.⁴ The springs are AR-pattern; the parts they drive are not.

2.6.1 The Drastic ST: the planned upgrade for the gun documented here

The owner’s record lists a Mimtac Drastic ST, part DRST-BLK-01, as acquired and not installed as of September 2026. The part number is Mimtac’s own; the maker’s product page gives:⁵

Table 3 — The Drastic ST: the planned upgrade for the gun documented here


Product	DRASTIC ST AR Shotgun Trigger
SKU	DRST-BLK-01 (black)
Pull	”crisp 4.0-lb single-stage”
Blade	flat
Construction	”self-contained cassette”; heat-treated steel and aluminium
Platforms named	”VR80, MK12, GF25, and similar”
Maker’s claim	”modified internal geometry and a tuned hammer system optimized for shotgun applications”; reliable “from light target shells to heavy 3-inch rounds”
Price	$119.99, mimtac.com, read 19 September 2026
Warranty	Mimtac limited lifetime

What an owner should weigh before fitting it:

The claim about light loads is the trigger maker’s, and it is about ignition. A trigger cannot make a gas system cycle a load that does not push the carrier far enough; that is the gas system’s job (Vol 3). A reliable hammer strike on a light target load and reliable cycling of that load are two different questions, and the second is not the trigger’s to answer.
It replaces the parts that carry the safety’s engagement. A cassette trigger replaces hammer, trigger, disconnector and springs as a unit. After fitting, the standard function checks — safety on, trigger pulled, no hammer fall; hammer held to the rear on release after the action is cycled with the trigger held; reset heard and felt — apply exactly as they do on an AR-15, and must pass before the first live shell.
The manual’s warranty language is unambiguous (Vol 3 §3.10), and Mimtac’s own warranty covers the trigger, not the gun. ⭐ It is worth knowing that Armscor’s own parts subsidiary, Advanced Tactical, sells this trigger — “MIMTAC Drastic ST Trigger - BLK”, $94.99 on 19 September 2026, listed under “VR80 Competition” as compatible with “Derya MK-12/20, VR80/90 variants”. The company that wrote “Any addition of after market parts” into the warranty sells the aftermarket part through its own store. That does not amend the warranty text, but it is a reasonable thing to raise with RIA before a warranty claim rather than after one.⁶
No installation instructions for this trigger were read for this dive. Mimtac’s site has an “Installations” page; it should be read before the work, not reconstructed from AR-15 practice.

2.7 Pump or Gas: the Choice the 870 Makes the Other Way

The companion dive on the Remington 870 documents the other answer to the same question. The contrast is summarised here only because it bears directly on how the VR80 must be fed.

A pump shotgun’s action is worked by the shooter’s arm, so it cycles anything that fits the chamber — a 1,200 ft/s managed-recoil slug, a light target load or a 3-inch magnum — with the same stroke. A gas-operated shotgun is worked by a fraction of the shell’s own powder gas, so it cycles only the loads that deliver enough of it. RIA sets that floor for the VR80 in writing at 1,250 ft/s and 1⅛ oz (Vol 3 §3.4). The gun documented here is a slug gun, and its two recorded loads clear that floor comfortably (1,610 and 1,800 ft/s, Vol 5). A reduced-recoil slug such as Remington’s own 1,200 ft/s Managed-Recoil Slugger would not — it sits below the maker’s stated minimum.⁷

The gas gun buys back what it demands. Its recoil is spread over the time the carrier takes to travel, and follow-up shots need no hand movement. The 870 dive covers the pump side of that trade.

References

Armscor, semi-automatic shotgun listing, https://www.armscor.com/semi-auto; “VR80 5rd 12GA”, https://www.armscor.com/firearms-list/vr80-5rd-12ga; “VR60 Shotgun Standard 12GA 5rd”, https://www.armscor.com/firearms-list/vr60-shotgun-standard-12ga-5rd; all read 19 September 2026. ↩ ↩² ↩³ ↩⁴ ↩⁵
Armscor / Rock Island Armory, VR60 owner’s manual (“K - Manual”, PDF created 13 September 2016), linked from https://www.armscor.com/resources/manuals/, read 19 September 2026. ↩ ↩²
Armscor / Rock Island Armory, Users Manual VR80 Mag Fed Shotgun, 04/2020, https://www.armscor.com/hubfs/RIA%20VR80%2004-2020.pdf, read 19 September 2026: parts list (p. 5), exploded view (p. 6), disassembly (pp. 7–8), maintenance (p. 9). ↩ ↩² ↩³ ↩⁴
Tooth and Nail Armory product pages as archived by the Internet Archive: “Rock Island VR80 and VR82 Drop In Trigger (Curved)”, capture of 2 December 2023; “14.25” Handguard for Rock Island VR80”, capture of 27 January 2021; “Rock Island VR80 Oops Kit”, capture of 20 April 2021; “Rock Island VR80 MAX”, capture of 28 July 2021; all read 19 September 2026. ↩ ↩² ↩³
Mimtac, “DRASTIC ST AR Shotgun Trigger”, https://mimtac.com/product/drastic-st-ar-shotgun-trigger/, and “AR Shotgun Triggers” category page, https://mimtac.com/product-category/ar-shotgun-triggers, both read 19 September 2026. ↩ ↩² ↩³
Advanced Tactical (“A Subsidiary of Armscor / Rock Island Armory”), VR80 parts listing, https://advancedtactical.com/parts/shotgun-parts/vr-series-shotgun-parts/vr80-parts/, VR80 Competition listing, https://advancedtactical.com/competition-parts/vr80-competition/, and product pages “Drastic ST Trigger - BLK”, “VR80 - Buffer Tube” and “SOPMOD Mil-Spec Buttstock + Buffer Tube Kit by J&E Machine Tech”, all read 19 September 2026. ↩ ↩²
Remington Ammunition, “Managed Recoil Slugger, 12 Gauge, 438 Grain, 2-3/4 in, 1200 fps”, item 20290, https://www.remington.com/shotshell/slugger-rifled-slug/29-20290.html, read 19 September 2026. ↩
