Variant Survey & Identification

The C96 evolved continuously across ~40 years of production, so “which C96 is this” is answered by reading a stack of small features against the serial number (Vol 5 handles dating proper). This volume is the canonical variant reference for the hub — the DL-44 and future Mauser-derived prop builds link here rather than re-deriving it, and it seeds the variant-survey notes.

4.1 The fastest visual handle: the hammer

The single quickest dating/ID handle is the hammer, which evolved in a clear sequence:

Table 1 — The single quickest dating/ID handle is the hammer, which evolved in a clear sequence

Hammer	Era	Tell
Spur (prototype)	1894–95	Pre-production only; pointed spur
Cone hammer	1896–~1899	Concentric rings forming a cone on each side of the grasping area; earliest production
Large ring hammer	~1899–~1904	Open ring, large diameter
Small ring hammer	~1904 onward	Open ring, smaller diameter; the long-run standard

The cone→large-ring→small-ring progression maps roughly to serial ranges (Vol 5) and is the first thing to read.

4.2 The main production lineage

4.2.1 Pre-production & cone hammer (1896–~1899)

The earliest guns (spur then cone hammer) carried features later dropped: a stepped barrel, checkered grips, and originally a single locking lug engaging the bolt (two lugs were adopted very early — see Vol 2 §2.5, Vol 5). Made in 6-, 10-, and 20-shot magazine versions plus a carbine. Chamber marked “SYSTEM MAUSER” on the earliest guns. The 20-shot was discontinued after 1898; the 6-shot persisted as a niche.

4.2.2 Large ring hammer & the “Flat Side” (~1899)

Around serial ~15,000 the receiver sides, previously milled with decorative panels, were left plain — the “Flat Side” variation — beginning with an Italian Navy contract (its own serials 1–5,000; the 15,000–20,000 commercial skip was never backfilled). The firing pin’s retaining plate was replaced by a single locking lug machined on the firing-pin head in this era. Later large-ring guns show the “shallow-milled” side panels (~30,000 range) and the narrow rear panels that were eventually used to stamp the Mauser name and address.

4.2.3 Small ring hammer (~1904 onward)

The long-run commercial standard. Shorter extractor, lengthened external barrel-extension ribs, and — around serial ~40,000 — the rifling changed from four grooves to six. The most-encountered pre-war commercial 10-shot lives in the 40,000–275,000 range. The Mauser banner trademark appears on the chamber of a subset (~10,000 guns).

4.2.4 The “Bolo” (~1901–02, and post-war)

The Bolo (a compromise model) kept the 6-shot external dimensions but a 10-shot magazine, with a short 99 mm (3.9″) barrel and smaller grip. Offered originally in the ~29,000 range; the name (“Bolo” = Bolshevik) attaches to the post-WWI short-barrel guns widely sold to/used in revolutionary Russia. Post-war Bolos (1920s) are common.

4.2.5 1920 Versailles reworks

To comply with the Treaty of Versailles, many long-barrel guns were cut to under 4″, the tangent sight removed, the top of the barrel extension milled flat, and a new front sight welded on. These usually carry a “1920” stamp on the barrel extension or frame. Many also got new proof/unit marks (e.g. Finnish “SA”, French Gendarmerie contracts), and a host of hybrid rebarreled oddities exist (e.g. 7.65 mm Luger-barreled guns).

4.2.6 Model 1930 (M30)

A simplification/improvement of the 1920s commercial gun (~serial 800,000): the Universal Safety (allows lowering the hammer on a loaded chamber), a transitional stepped barrel early on, and the D.R.P.u.A.P. marking (design protected by German + foreign patents) with the Mauser banner. Made until ~1939. A few were built on the frame prepared for the selective-fire model but as ordinary semi-autos.

4.2.7 Schnellfeuer / “M712” (1932–38) — select-fire

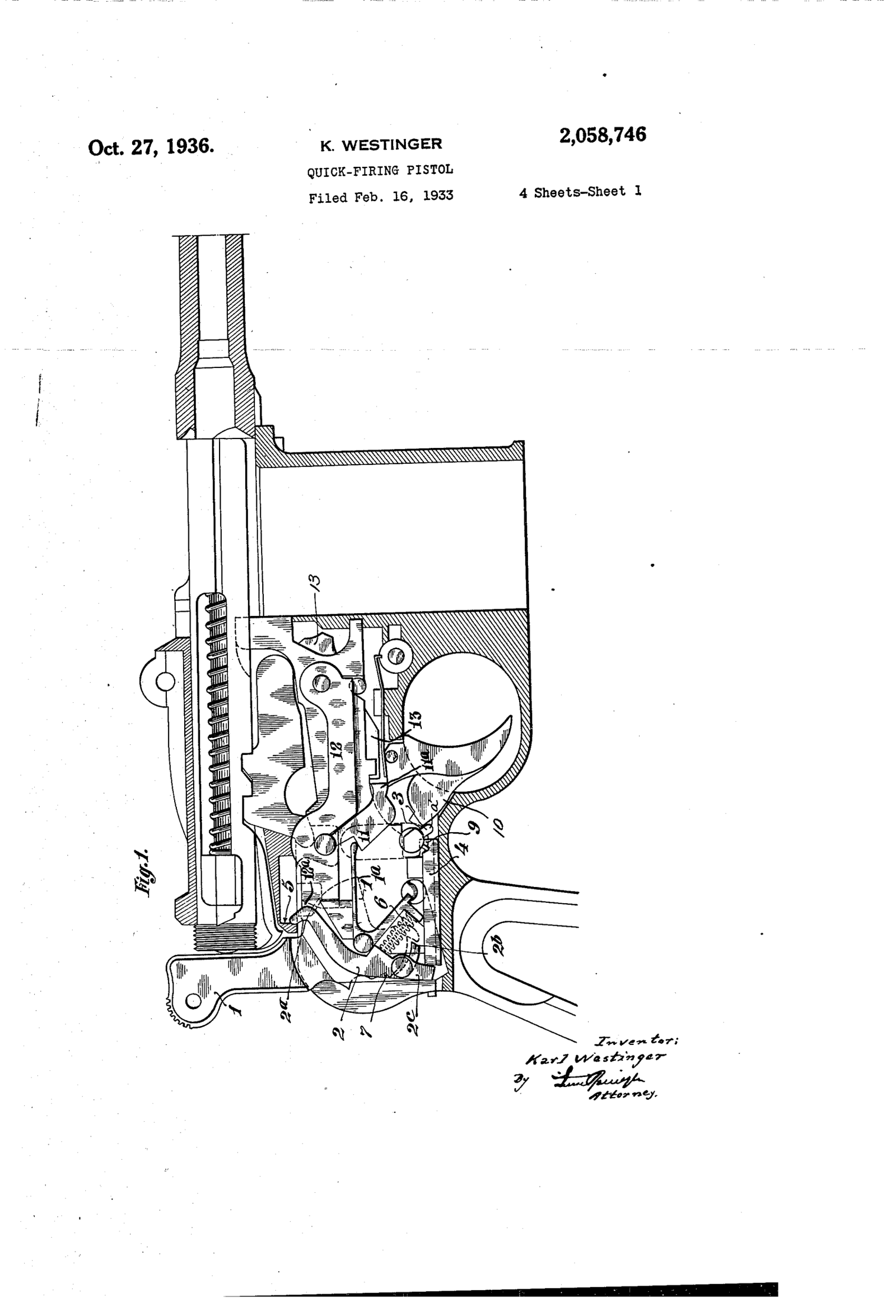

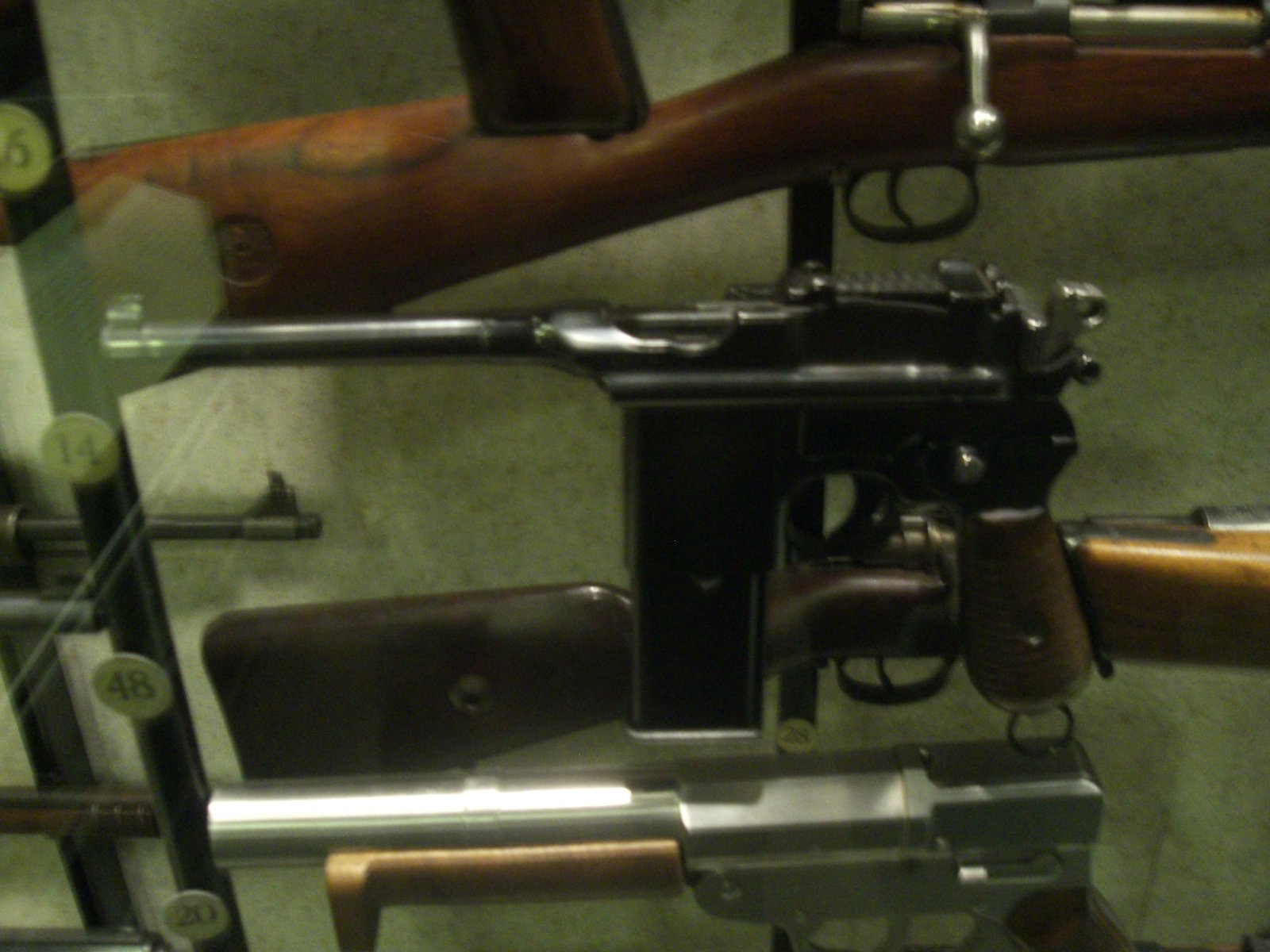

Originating with a 1917 select-fire carbine prototype (40-round magazine — an SMG forerunner), the production select-fire C96 came in two patterns: the Nickl model (US 1,980,874; reliability issues, ~4,000 made) and the common Westinger model (US 2,058,746, 1936). “Model 712” is a Stoeger catalog name, not a factory designation; “Model 711” is the M30 with a detachable magazine but no rapid-fire. ~100,000 Schnellfeuers were made, mostly exported to China (“Made in Germany” in Chinese characters on the magazine well). Select-fire = NFA machine gun; this series documents it but never a conversion (Vol 11).

4.3 Contracts & foreign copies

Table 2 — 4.3 Contracts & foreign copies

Type	Origin	Tell
Italian Navy	Mauser, 1899	Flat-side, large ring; serials 1–5,000; “DV”/“AV” Italian proofs
Persian / Turkish / other contracts	Mauser	Crest engraving on the (squared) left-rear panel
Astra 900-series	Spain (Unceta)	Mechanically distinct copy; often one-piece bolt/barrel differences; Spanish proofs
Chinese commercial copies	various Chinese arsenals	Crude machining/metallurgy; many in 7.63
Chinese Shanxi Type 17	Taiyuan Arsenal, Shanxi (warlord Yan Xishan), ~1929	Chambered in .45 ACP — oversize receiver/magazine + oversize stock/holster; Chinese inscriptions; the famous “big bore broomhandle.” Documented from Gorelick’s account of the type, held in the project’s reference extracts.

The Astra and Chinese copies matter for both collectors (don’t pay Mauser money for a copy) and prop donors (a copy can be a legitimate, cheaper donor if the silhouette is right).

4.4 Identification checklist

Read these in order against the serial (Vol 5):

1. Hammer — cone / large ring / small ring (§4.1).
2. Receiver sides — milled panels (deep / shallow) vs flat side.
3. Barrel length — 5.5″ standard, 3.9″ Bolo, <4″ 1920-rework, 4.75″/4″/5.25″ era variants (Vol 3, the project’s drawing and CAD catalog).
4. Chamber marking — “SYSTEM MAUSER” → “WAFFENFABRIK MAUSER OBERNDORF” → Mauser banner (Vol 5).
5. Safety — long early lever (down to apply) → late first type → “Ns” → Universal (Vol 6 covers the mechanism).
6. Caliber tells — 7.63 default; 9×25 Export (magazine indentation, reinforced chamber); 9×19 Red 9 (carved red “9”, Eagle on magazine front); .45 (Shanxi Type 17, oversize).
7. Maker — Mauser banner / Oberndorf address vs Astra/Chinese marks.

4.5 Choosing a C96 as a prop donor (bridge to the DL-44 and future Mauser blasters)

For a prop build that wants a real C96 base, the donor question is mostly about silhouette and legal friction, not collector value:

• Silhouette: the DL-44 (and most Mauser-derived blasters) read off the standard 5.5″ large/small-ring profile. A Bolo’s short barrel changes the proportions — confirm the intended look before committing (this is the debated point in the DL-44 deep dive, the DL-44 dive).
• Don’t sacrifice a collectible. Use a rough, mismatched, or already-modified gun, a copy (Astra/Chinese), or a non-firing/deactivated specimen rather than cutting a matching-numbers original.
• Legal: a real-firearm donor carries the full antique/C&R posture (Vol 5, Vol 11); a copy or deactivated piece may not — which is often why prop builders prefer them.
• Hand it back to the prop deep dive: the modification steps (scope mount, flash hider, grips, refinishing) live in the DL-44 series, not here. This volume just answers “which C96, and is it the right base.”

4.6 References (Vol 4)

• Henrotin, The Mauser C96 Explained (©2002) — facts only; Breathed & Schroeder, System Mauser; Jan C. Still, Pistols of Germany (the project’s reference collection).
• Gorelick, “The Chinese Shanxi Type 17” (the project’s reference text extracts).
• US Patents 1,980,874 and 2,058,746 (public domain, the project’s blueprint collection).
• Synthesis: this dive’s research notes §5–6. Dating detail: Vol 5. Full bibliography: Vol 12.
